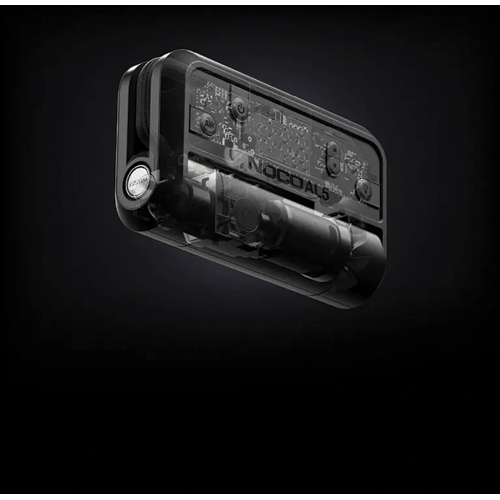

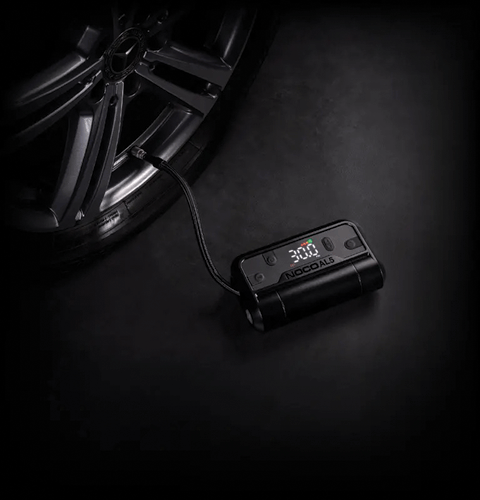

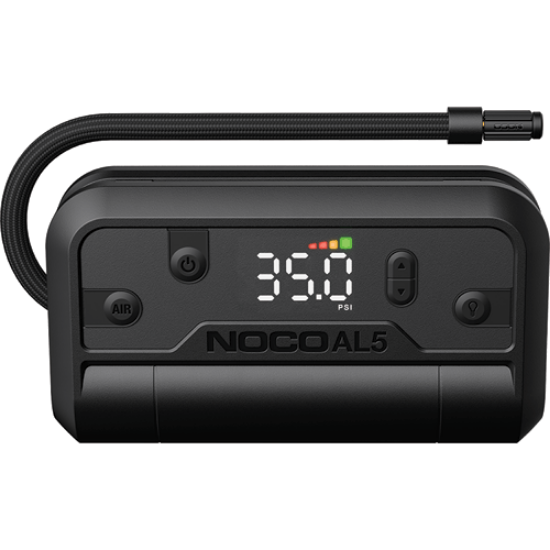

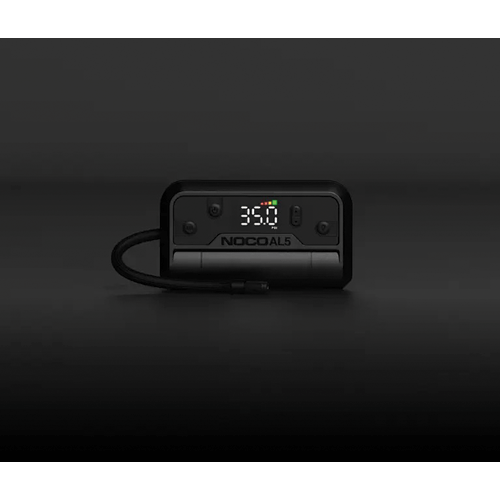

5A 17LPM Lithium Air Compressor

Whats in the Box

• AL5 Lithium Air Compressor
• Integrated 10in Braided Hose
• 18in USB-C to USB-C Cable
• Presta Valve Adapter
• Needle Adapter
• Inflatable Toy Adapter
• Quick Connect Adapter
• Microfiber Storage Bag
• Safety & Warranty Information

Operating Requirements

• Operating Temperature: 14° to 113° F(-10° to 45° C)
• Storage Temperature: 14° to 113° F(-10° to 45° C)
• Relative Humidity: 0 to 95% Non-Condensing

Power

• Voltage: 12 Volts
• Max Current Draw: 10 Amps
• Working Current: 8 Amps
• Motor Rating: 90 Watts
• Cooling: Fan

Air Compressor

• Max Pressure: 130 psi / 8.96 bar / 896.32 kPa
• Max Tire Size: 31 Inches
• Max Airflow: 17 Liters Per Minute
• Duty Cycle: 20 min @ 50PSI on time / 40 min off time
• Manual Mode Duty Cycle: 10 min on time / 50 min off time
• Fill Time 0 - 40 PSI: 7.0 min +/- 10% with 205-65R16 95H Tire
• Fill Time 35 - 40 PSI: 1 min +/- 10% with 205-65R16 95H Tire
• Pressure Gauge: Intuitive Interface + Digital Gauge
• Features: Dwell, Auto-Memory, Auto-Shutoff, Manual Mode

Cord Management

• Power Type: Battery Powered
• Air Hose Length: 10in (0.25m)
• Air Hose Material: Black EDPM with Polyester Braiding
• Oil, gas, grease, water, chemical, UV, abrasion resistant

Safety

• Over-Current: Yes
• Over-Temperature: Yes
• LED Flashlight
• 50 Lumens
• Number of Modes: 6X (100%, 50%, 10%, SOS, Blink, Off)

Product Size

• Height: 4.33in (110mm)
• Width: 7.73in (196.4mm)
• Depth: 2.16in (55mm)
• Weight: 1.8lb (0.82kg)

Limited Warranty

• 1 Year Limited Warranty
